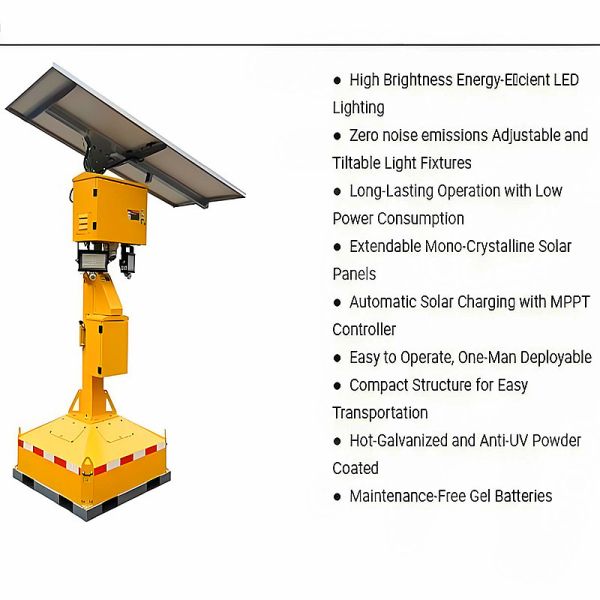

The Trailer Lighting Tower with Solar Generator is the ultimate dual-function mobile power unit — a LED light tower and a solar generator station combined on a single trailer chassis. This portable light tower provides up to lumens of illumination while simultaneously supplying backup power through integrated AC outlets — eliminating the need for separate lighting and generator equipment on site.
Whether illuminating a construction site at night, powering equipment in a remote camp, or providing emergency lighting during a blackout, this mobile light tower delivers both functions from one rugged, weatherproof system. The waterproof enclosure and remote monitoring ensure reliable, secure operation in any environment.
Key Features:
Built-in Backup Power
●— Multiple AC/DC outlets for equipment and appliances
Telescopic Mast
●— 7m extendable mast with 360° rotation for optimal light coverage
Solar + Battery Autonomy
●— 12-24 hour continuous operation on stored solar energy
Weatherproof Waterproof Enclosure
●— All components sealed against rain, dust, and humidity
One-Unit Logistics
— Single trailer replaces separate light tower + generator + fuel truck
Remote Monitoring & Security
— App control, GPS, and optional CCTV integration
Zero Emissions
— Meets green site and urban noise regulations

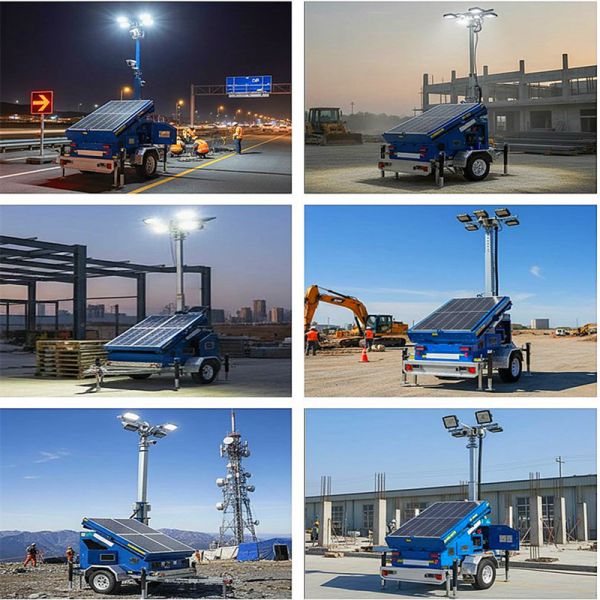

Applications: Night construction / outdoor events / emergency response / equipment rental / film production / parking lot illumination.
Ideal for construction sites, mining operations, emergency response scenarios, and remote infrastructure projects requiring both illumination and security surveillance without grid dependency.
A vital tool for first responders, disaster management teams, and infrastructure crews seeking reliable off-grid illumination.
Built with weather-resistant materials and a collapsible design, it enables quick deployment and relocation. Ideal for enhancing security, safety, and visibility while reducing carbon footprint and energy costs.
Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Product Description
|
Model
|
SPST-300 Block
|
SPST-300
|
SPST-600
|
SPST-900
|
SPST-1200
|
SPST-1800
|
SPST-2400
|
|
Solar Panel
|
1 ×460W
|
1 × 460W
|
2 × 460W
|
3 × 460W
|
4 × 460W
|
6 × 460W
|
8 × 460W
|
|
Panel Lifting
|
|
10°~45° Manual Lifting
|
10°~45° Manual Lifting
|
|
|
0°~25° Hydraulic Lifting
|
0°~25° Hydraulic Lifting
|
|
GEL/LFP Battery
|
1 × 200Ah DC12.8V
|
2 × 200Ah DC12V
|
4 × 200Ah DC12V
|
6 × 200Ah DC12V
|
8 × 200Ah DC12V
|
12 × 200Ah DC12V,Auto-Fan
|
16 × 200Ah DC12V,Auto-Fan
|
|
Battery Capacity
|
2560Wh 80% Deep
|
4800Wh 80% Deep
|
9600Wh 80% Deep
|
14400Wh 80% Deep
|
19200Wh 80% Deep
|
28800Wh 80% Deep
|
38400Wh 80% Deep
|
|
System Voltage
|
DC12V
|
DC12V
|
DC24V
|
DC24V
|
DC48V
|
DC48V
|
DC48V
|
|
LED
|
|
|
|
|
|
|
|
|
Rotation
|
No
|
Optional
|
Optional
|
350° Electric
|
350° Electric
|
350° Electric
|
350° Electric
|
|
Tilt
|
No
|
90° Electric
|
90° Electric
|
90° Electric
|
90° Electric
|
90° Electric
|
90° Electric
|
|
Controller
|
40A MPPT
|
40A MPPT
|
40A MPPT
|
60A MPPT
|
40A MPPT
|
60A MPPT
|
80A MPPT
|
|
Mast
|
5M 4 Sections
|
7M 5 Sections
|
7M 5 Sections
|
9M 5 Sections
|
9M 5 Sections
|
9M 9 Sections
|
9M 9 Sections
|
|
Mast Lifting
|
Manual Winch
|
Manual Winch
|
Manual Winch
|
Electric Winch
|
Electric Winch
|
Hydraulic
|
Hydraulic
|
|
Trailer Standard
|
No
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
|
Hitch
|
No
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
|
Brake
|
No
|
No
|
Electric
|
Mechanical
|
Mechanical
|
Electric
|
Electric
|
|
Axle
|
No
|
Single
|
Single
|
Single
|
Single
|
Double
|
Double
|
|
Tire
|
No
|
14 inch
|
14 inch
|
15 inch
|
15 inch
|
15 inch
|
15 inch
|
|
Outriggers
|
No
|
4 ×
|
4 ×
|
4 ×
|
4 ×
|
4 ×
|
4 ×
|
|
Forklift Holes
|
4 ×
|
2 ×
|
2 ×
|
2 ×
|
2 ×
|
2 ×
|
2 ×
|
|
Wokring Temp
|
0℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
-20℃~50℃
|
|
Charging Time
|
4.4 hours
|
8.8 hours
|
8.8 hours
|
8.8 hours
|
8.8 hours
|
8.8 hours
|
8.8 hours
|
|
Running Time
|
9.6 hours
|
19.2 hours
|
19.2 hours
|
19.2 hours
|
19.2 hours
|
19.2 hours
|
19.2 hours
|
|
Dimension(mm)
|
1000*1000*2900
|
2500*2150*2700
|
3700*2150*2750
|
3550*1650*2800
|
3650*2250*2800
|
4150*2250*2800
|
4150*2250*2800
|
|
Weight
|
450kg
|
750kg
|
950kg
|
1400kg
|
1600kg
|
2000kg
|
2400kg
|
|
QTY in 20' / 40'
|
10 units / 20 units
|
8 units / 16 units
|
8 units / 16 units
|
3 units / 7 units
|
2 units / 4 units
|
2 units / 4 units
|
2 units / 4 units
|
